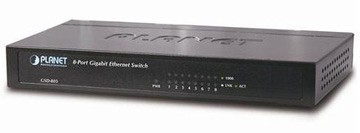

8-prievadų Gigabitinis interneto tinklo šakotuvas Planet GSD-805-EU

Trumpas aprašymas: • Gigabitinis interneto tinklo šakotuvas 8-prievadų; • 8 x 10/100/1000Mbps, metalinis korpusas; • Auto-MDI/MDIX visiems portams; • Palaiko CSMA / CD protokolus; • Atitinka interneto standartus: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T; • MAC adresų atmintis: 8k Bitų; • Maitinimas 100-240V AC, 50/60Hz, 0.2A; • Išmatavimai: 191(L) x 85,7(W) x 26,3 (H) mm. Techninė charakteristika: • 10/100/1000Base-T Ports: 8 • Dimension (W x D x H) 191 x 85 x 26 mm • Weight: 390g • Power Requirement: Internal power 100-240V AC, 50/60Hz, 0.2A • Power Consumption / Dissipation: 9.6 watts / 32 BTU Switch Specification • Switch Processing Scheme: Store-and-Forward • Address Table: 4K entries • Share data Buffer: 1Mbit on-chip frame buffer • Flow Control: Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex • Switch fabric: 16Gbps • Throughput (packet per second): 11.9Mpps • Network cables: 10/100/1000Base-T:Cat. 3, 4, 5, 5e, 6 UTP cable (100meters, max.) EIA / TIA-568 100-ohm STP (100meters, max.) Standards Conformance • Standards Compliance: IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Full-duplex flow control • Temperature Operating: 0~50 Degree C • Storage: -40~70 Degree C • Humidity Operating: 5~90% • Storage: 5~90% (Non-condensing) • Regulation Compliance FCC Part 15 Class A, CE
