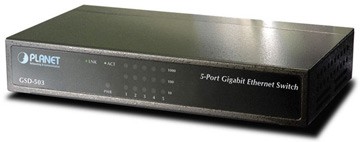

5-prievadų Gigabitinis interneto tinklo šakotuvas Planet GSD-503-EU

Trumpas aprašymas: • Gigabitinis interneto tinklo šakotuvas 5-prievadų; • 5 x 10/100/1000Mbps, metalinis korpusas; • Auto-MDI/MDIX visiems portams; • Palaiko CSMA / CD protokolus; • Atitinka interneto standartus: IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab 1000Base-T; • MAC adresų atmintis: 8k Bitų; • Išorinis maitinimo adapteris 12V 0.5A; • Išmatavimai: 155(L) x 86(W) x 26 (H) mm. Techninė charakteristika: • Hardware Version: 5.0 • 10/100/1000Base-T Ports: 5 Auto MDI/MDIX ports • Enclosure: Metal • Power on/off button: 1 • Dimension (W x D x H) 155 x 86 x 26 mm • Weight (g)360 • Power Requirement: External power adapter 12V, 500mA • Power Consumption / Dissipation (Full operating): 4.4 Watts / 15 BTU Switch Specification • Switch Processing Scheme: tore-and-Forward • Address Table: 8K entries • Flow Control: Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex • Switch fabric: 10Gbps • Throughput (packet per second): 7.44Mpps • Jumbo packet size: 9K Standards Conformance • Standards Compliance: IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet)IEEE 802.3ab (Gigabit Ethernet)IEEE 802.3x (Full Duplex Flow Control) • Temperature Operating: 0~50 Degree C • Storage: -10~70 Degree C • Humidity Operating Operating: 5~90%, Storage: 5~90% (Non-condensing) • Regulation Compliance FCC Part 15 Class A, CE
